flame resistant steel cord conveyor belt for underground use

UsageSteel Cord Flame Resistant Conveyor Belts are suitable for conveying materials in flame resistant and anti-explosion occasions, especially i...

flame  resistant steel cord conveyor belt for underground use

flame resistant steel cord conveyor belt for underground use

UsageSteel Cord Flame Resistant Conveyor Belts are suitable for conveying materials in flame resistant and anti-explosion occasions, especially i...

Usage

Steel Cord Flame Resistant Conveyor Belts are suitable for conveying materials in flame resistant and anti-explosion occasions, especially in underground coalmines.

Characteristics

Except the advantages of conveying materials at the occasion of high strength, long distance and large load as the steel cord conveyor belt, the steel cord flame resistant conveyor belt shall meet the safety requirements below.

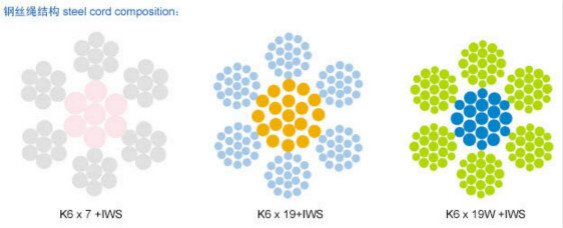

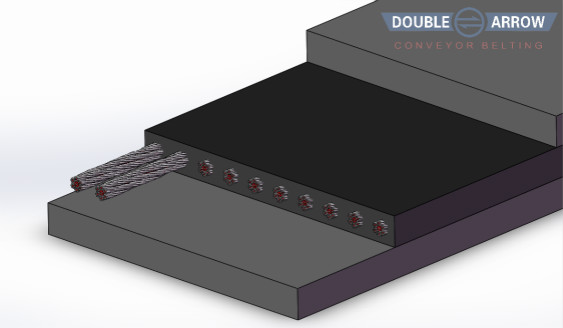

Structure

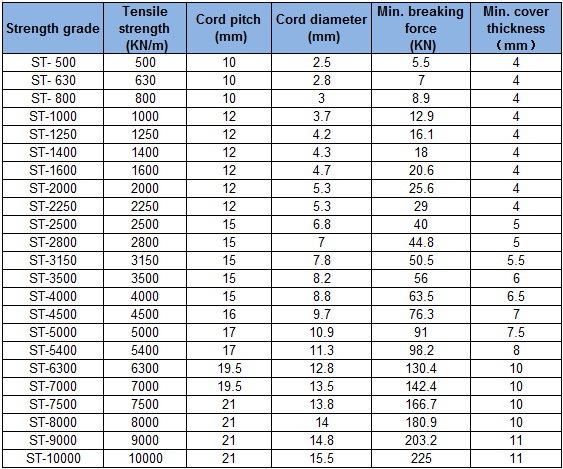

Standard Specifications




Note:  Cover thickness, cord diameter, and cord pitch can be manufactured according to customer’s requirements.

Rubber Covers

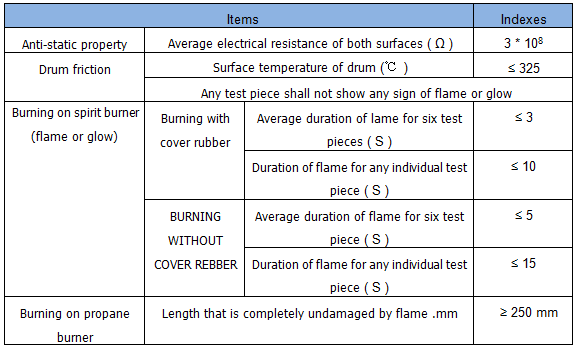

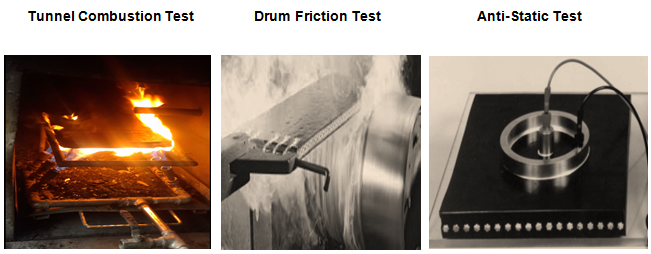

 Flame resistance for mines: suitable for conveying flammable and combustible dangerous materials. The average value of burning test shall be less than 10s, and the single value shall be less than 15s. Besides, it has to pass the drum friction test and tunnel propane combustion test.
