flame resistant steel cord conveyor belt for general use

UsageIt’s especially used in aboveground coal washeries, power plants, and non-coal underground mining. For general use with electrical and fir...

flame resistant steel cord conveyor belt for general use

flame resistant steel cord conveyor belt for general use

UsageIt’s especially used in aboveground coal washeries, power plants, and non-coal underground mining. For general use with electrical and fir...

Usage

It’s especially used in aboveground coal washeries, power plants, and non-coal underground mining. For general use with electrical and fire safety requirements to EN 12882.

Characteristics

The product is made of nylon canvas or EP canvas and finished through the processes of calendering, assembling, vulcanizing, etc. The unique formula enables it to work continuously in a flammable environment.

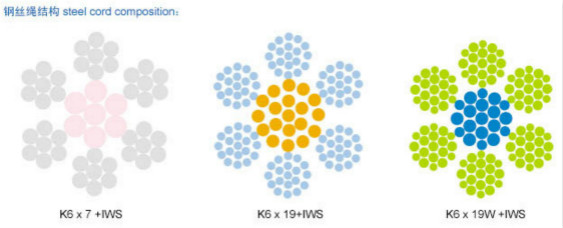

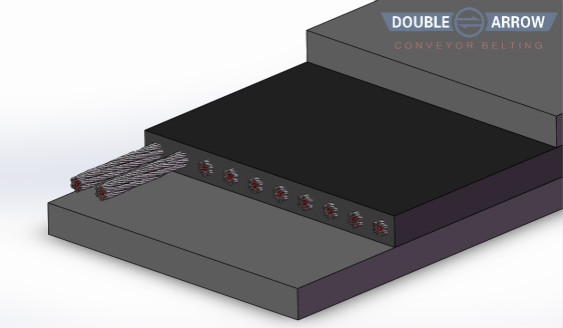

Structure

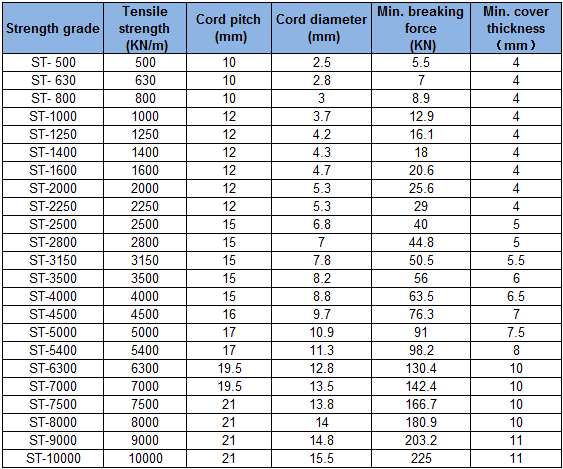

Standard Specifications




Note:  Cover thickness, cord diameter, and cord pitch can be manufactured according to customer’s requirements.

Cover Grades




Safety properties
